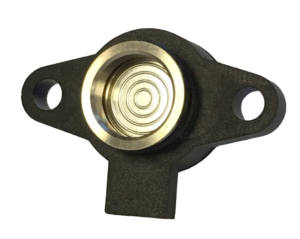

Phoenix Sensors is a US manufacturer of pressure sensors like the PPT71 series. The PPT71 is a low profile pressure sensor manufactured for low pressure OEM applications.  This silicon pressure transducer was designed for industrial and commercial applications.  The stainless steel design and high temperature analog component selection allows the sensor to be used in higher temperature (105C)applications and provide accurate results.

The PPT71 series utilizes MEMS piezo-resistive sensors pressurized on the passive backside of the SS housing which has superior long term stability, low manufacturing costs, and creditable(.5% ) linearity.  The design is simple, cost effective, and proves reliable for OEM customers.

Please contact us for Custom design availability.


Low Profile Pressure Transducer PPT71 Specifications

  • Low Pressure
  •  Media Isolated –SS316
  •  -5-105°C Operating Temperature
  •  Compact Size
  •  +-.5% Linearity FS
  •  Ratio 0.5 – 4.5V
  •  50-200 psi pressure ranges
  •  Absolute
  •  Media – Liquid, Air, & Gas
  •  IP65

Low Profile Pressure Transducer PPT71 Applications

  • Industrial Automation
  • HVAC
  • Automotive Engine
  • Compressor
  • Pneumatic
