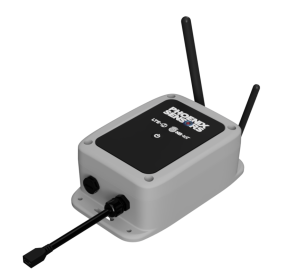

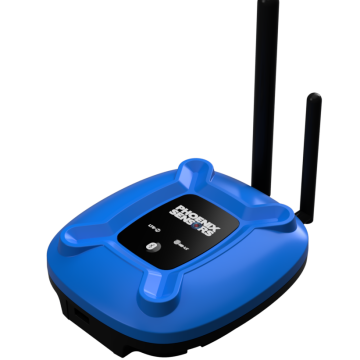

Phoenix Sensors is a US manufacturer of sensor gateways like the PSBW series. The WEXS-BLE-CEL is an advanced Bluetooth/Cellular, wireless Sensor gateway allowing customers to monitor sensor applications, save data, and receive alert notifications. The advanced IoT security format and flexibility allow our customers to meet their most challenging applications needs. The PSBW allows customers to monitor up to 8 Phoenix Sensors wireless sensors with update rates as fast as once a second. The data is stored on the Cloud and can be accessed via the Phoenix Sensors website.
Specifications:
- Bluetooth 5.0 – Single mode
- 4x Range (CODED PHY support) – Bluetooth 5.0
- 2x Speed (2M PHY support) – Bluetooth 5.0
- Multi-band cellular operation for world-wide operation
- Category LTE M and category NB-IoT support
- Power class 3
- Up to 500 ft
- Remote Monitoring of 8 sensors
- Carrier- AT&T and Verizon
Applications:
- CNC Machine Monitoring
- Industrial Automation
- HVAC Monitoring
- Compressor Monitoring
- Gas Pressure Monitoring
- Liquid Level Monitoring
Compatible Bluetooth Phoenix Sensors:
- WEPS25 Bluetooth Pressure Transducer
- WEPS25 Bluetooth Temperature Transducer
- WEPS77 Bluetooth Combination Pressure & Temperature Transducer
