Which App should I use?
Start with what you're monitoring from: a phone, a PC, a PLC, or a remote gateway.
Using a phone or tablet?
BLE device Apps. The sensor talks directly to your device.
WEXS
Direct BLE monitoring for up to 4 nearby sensors.
WEXS-10
The same direct BLE workflow, for up to 10 sensors.
WEXS Pro
Download up to 85K stored samples (EEPROM) and capture pressure as fast as every 5 ms.
WEXS Beacon
Reads Beacon broadcasts, with no connection held. Runs in the background.
Using a PC or laptop?
BLE desktop software. A Windows computer reads sensors directly.
Using a PLC or DAQ?
Analog integration. A gateway turns wireless readings into 0–5 V signals.
Monitoring remotely through a gateway?
IoT monitoring. A cellular gateway sends sensor data to the cloud.
Compare the Apps
Platform, connection and hardware requirements at a glance.
Scroll sideways to see all columns.
| App | Price | Platform | Connection | Sensors | EEPROM | Long range | Remote | Hardware | Best for |
|---|---|---|---|---|---|---|---|---|---|
| WEXS | $4.99 | iOS · Android | Direct BLE | Up to 4 | — | — | — | None | Field setup and local monitoring |
| WEXS-10 | $49.99 | iOS · Android | Direct BLE | Up to 10 | — | — | — | None | Larger local sensor groups |
| WEXS Pro | $29.99 | Android only | Advanced BLE | Up to 10 | ✓ | ✓ | — | None | Datalogging, Long Range, high-speed |
| WEXS Beacon | $9.99 | iOS · Android | BLE Beacon | Multiple | — | — | — | None | Low-power local monitoring |
| WEXS-BLE-DSKTP | $295 | Windows 10+ | BLE Beacon | Up to 25 | — | — | — | PC with Bluetooth 5.0 | Offline PC monitoring and logging |
| WEXS-BLE-AN | $4.99 | iOS · Android | BLE → 0–5 V | Up to 4 | — | — | — | WEXS-BLE-AN gateway | PLC / DAQ integration |
| Monsense | $49.99 | Web · iOS · Android | Beacon + cellular | Multiple | — | — | ✓ | WEXS-BLE-CEL gateway | Remote monitoring and alerts |
App details & downloads
Pricing, key capabilities and download links for each Phoenix Sensors monitoring App.
BLE device Apps
Mobile and desktop software that reads sensors directly over Bluetooth. No gateway required.

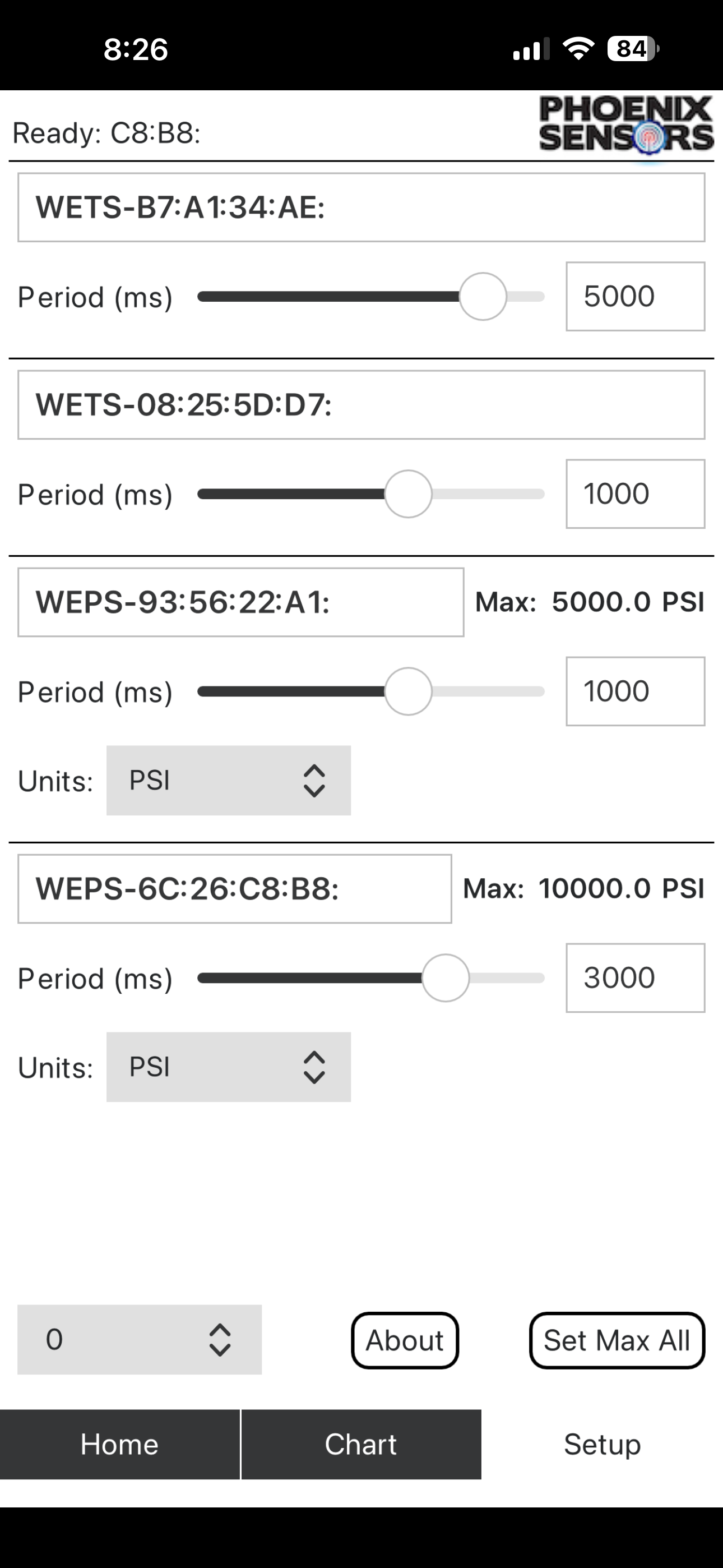

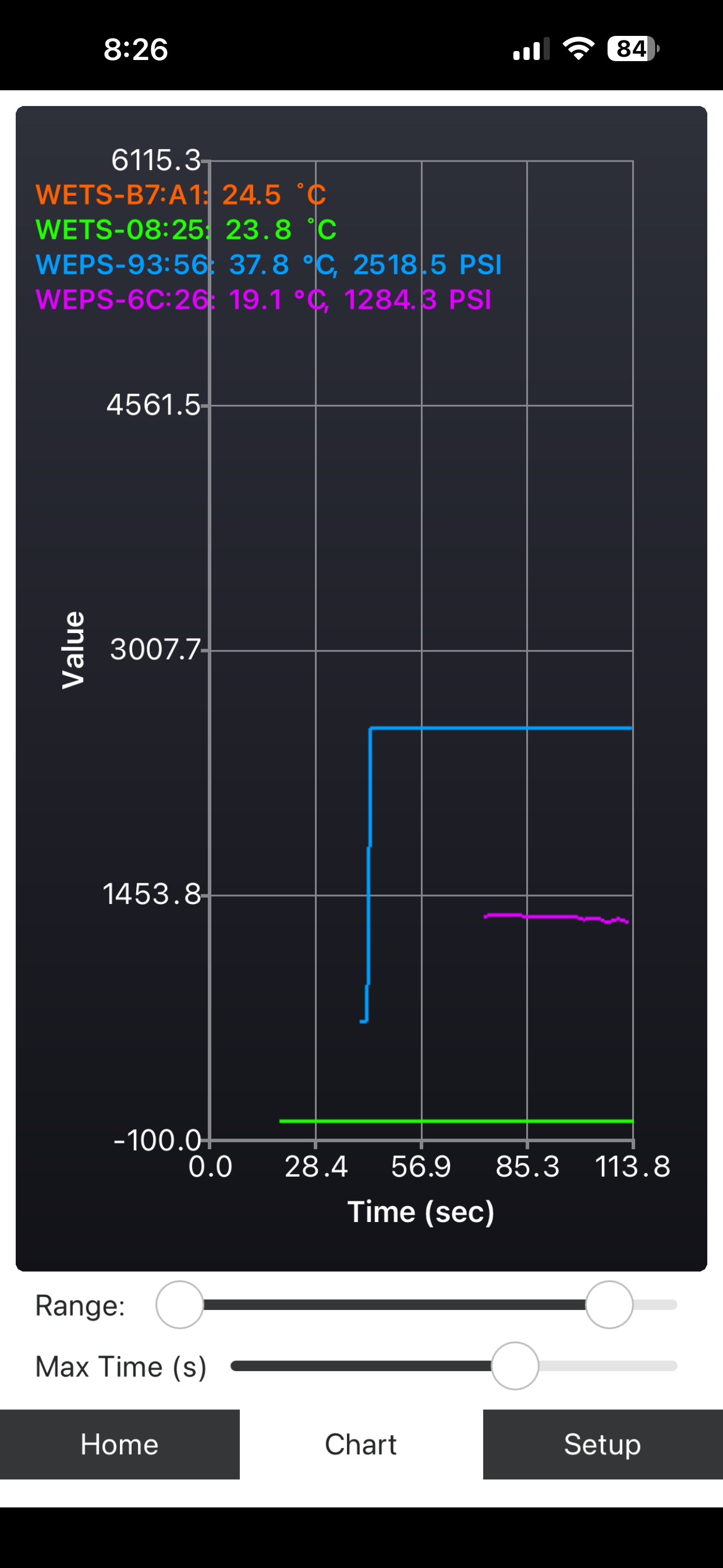

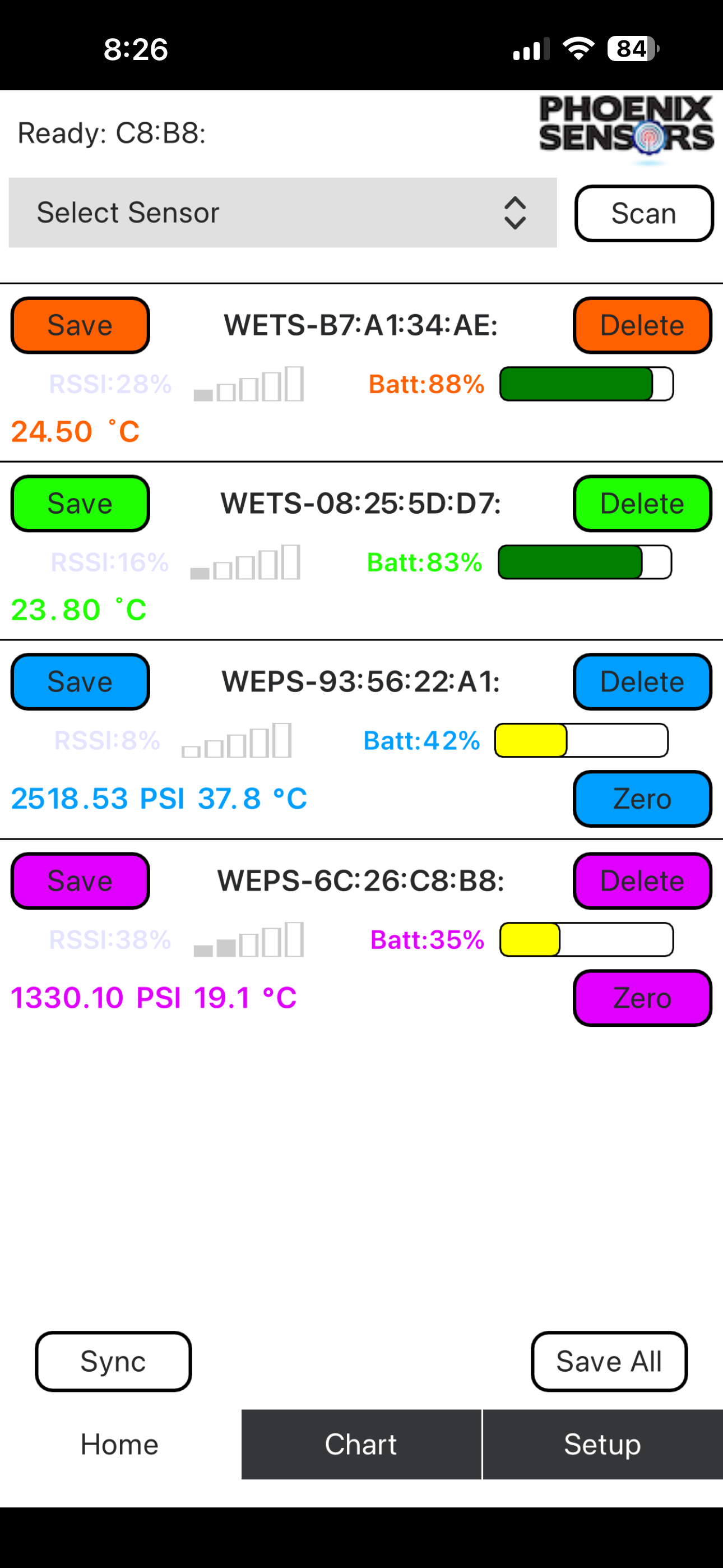

WEXS
Up to 4 sensors · Direct BLE
- Direct BLE connection
- Pressure and temperature
- Charts and local logging
- CSV export
- Sensor setup and naming
More screenshots

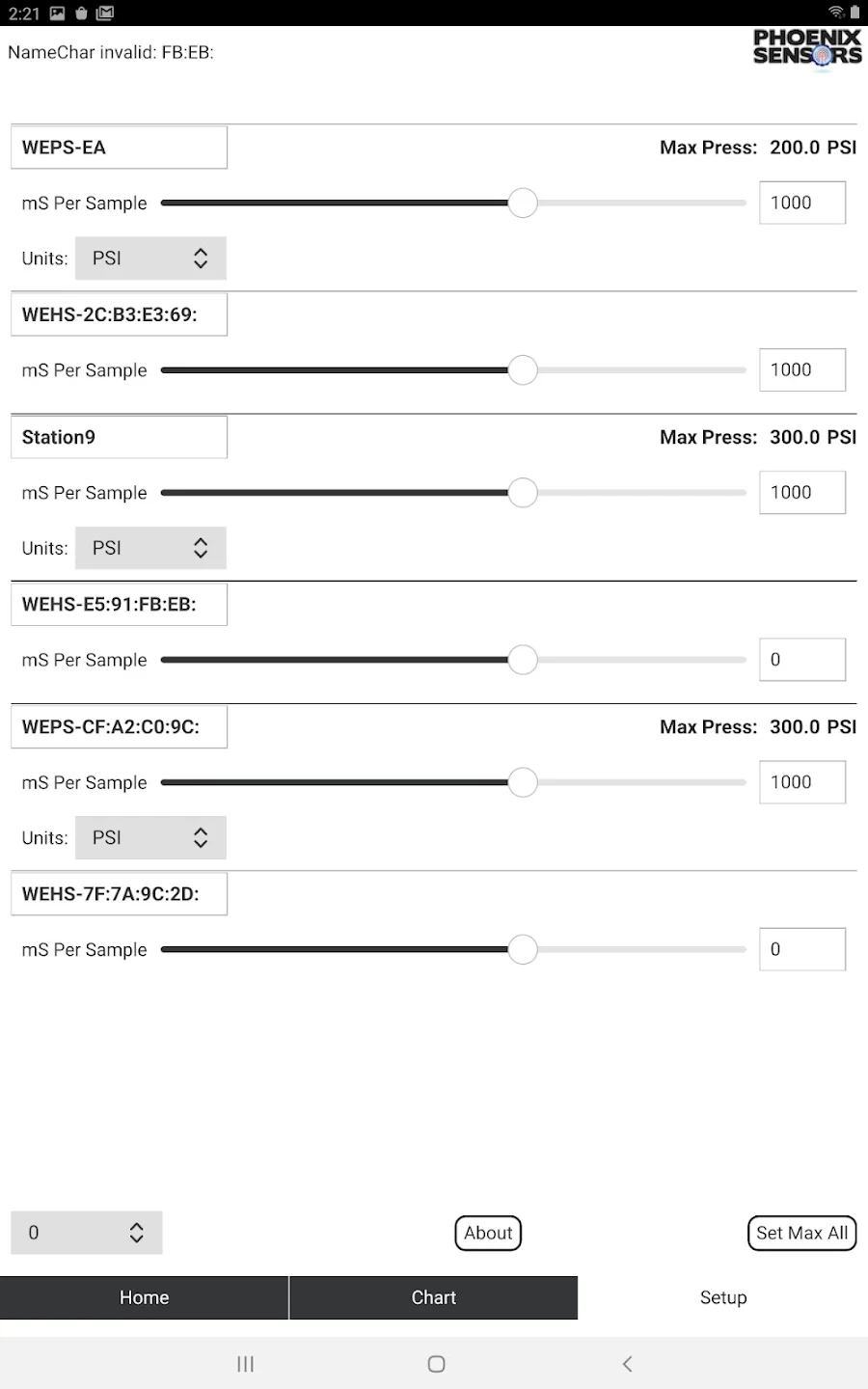

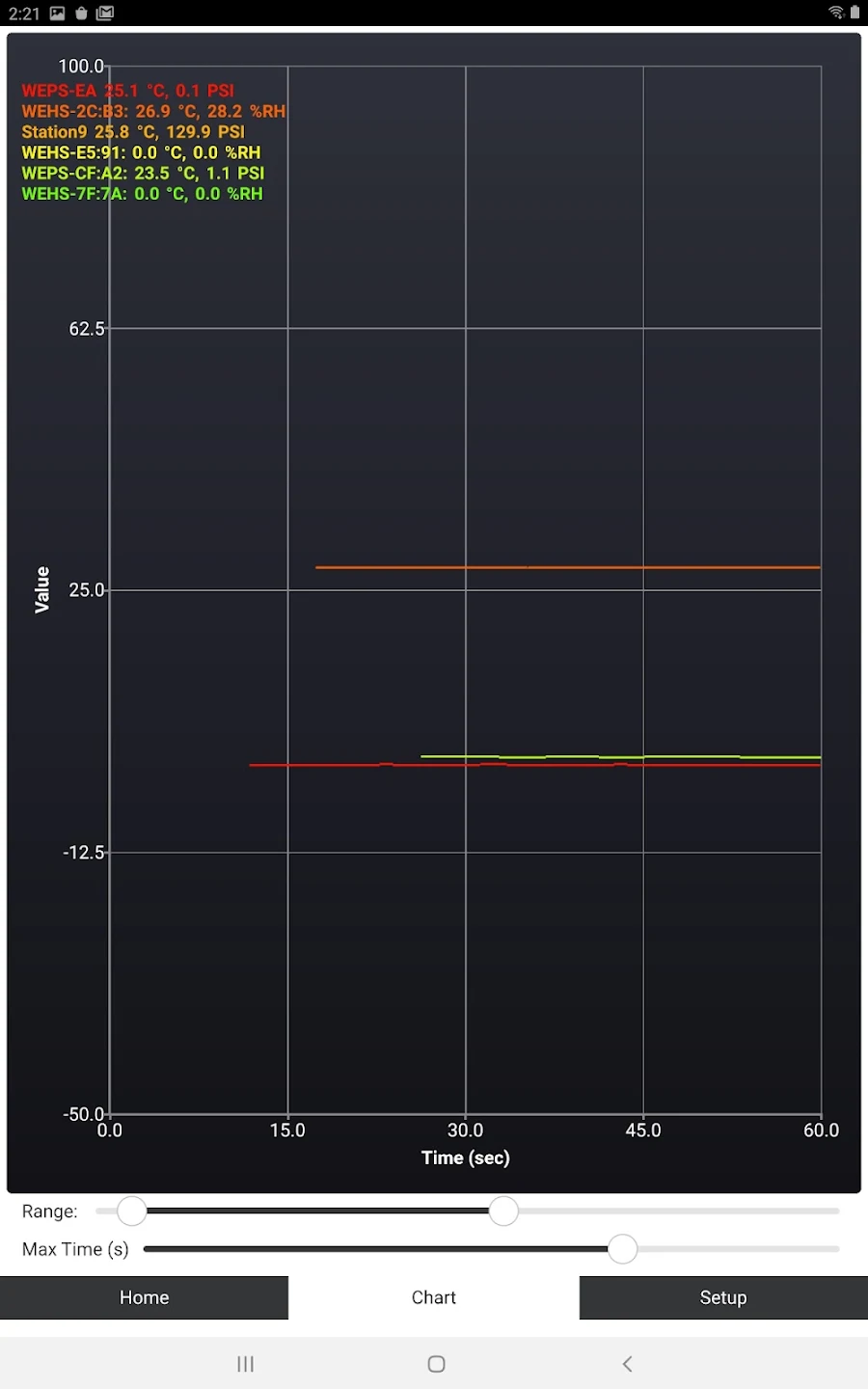

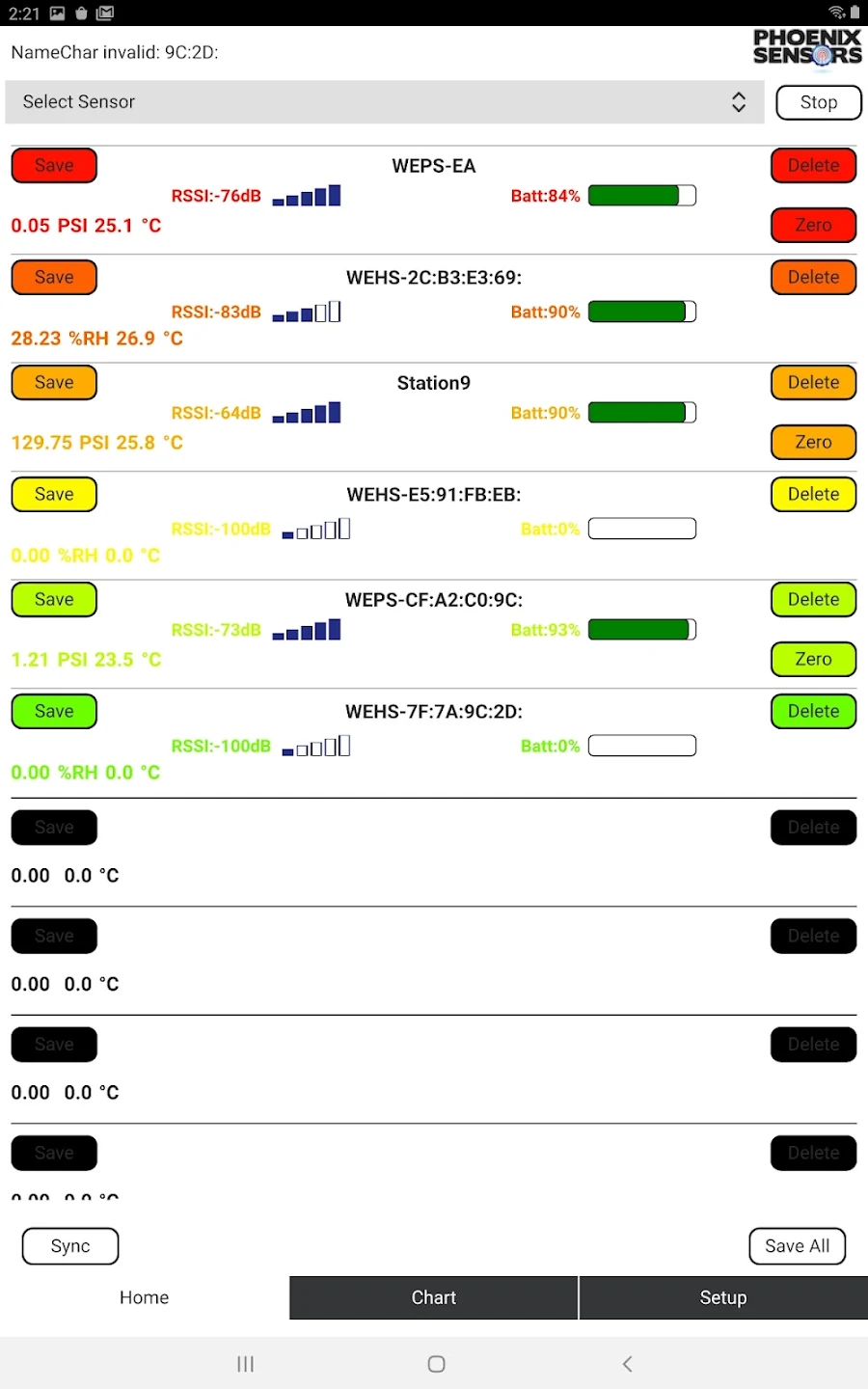

WEXS-10
Up to 10 sensors · Direct BLE
- Direct BLE connection
- Live measurements
- Charts and local logging
- CSV export
- Sensor setup controls
More screenshots

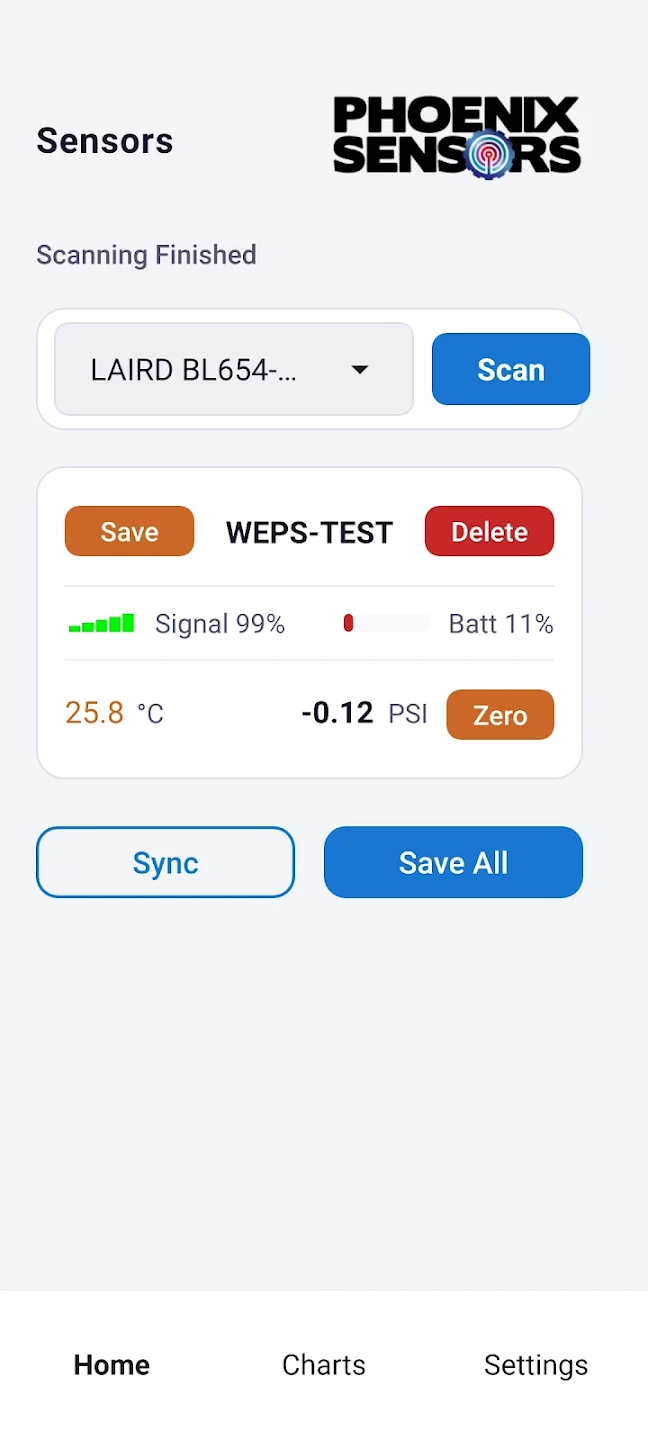

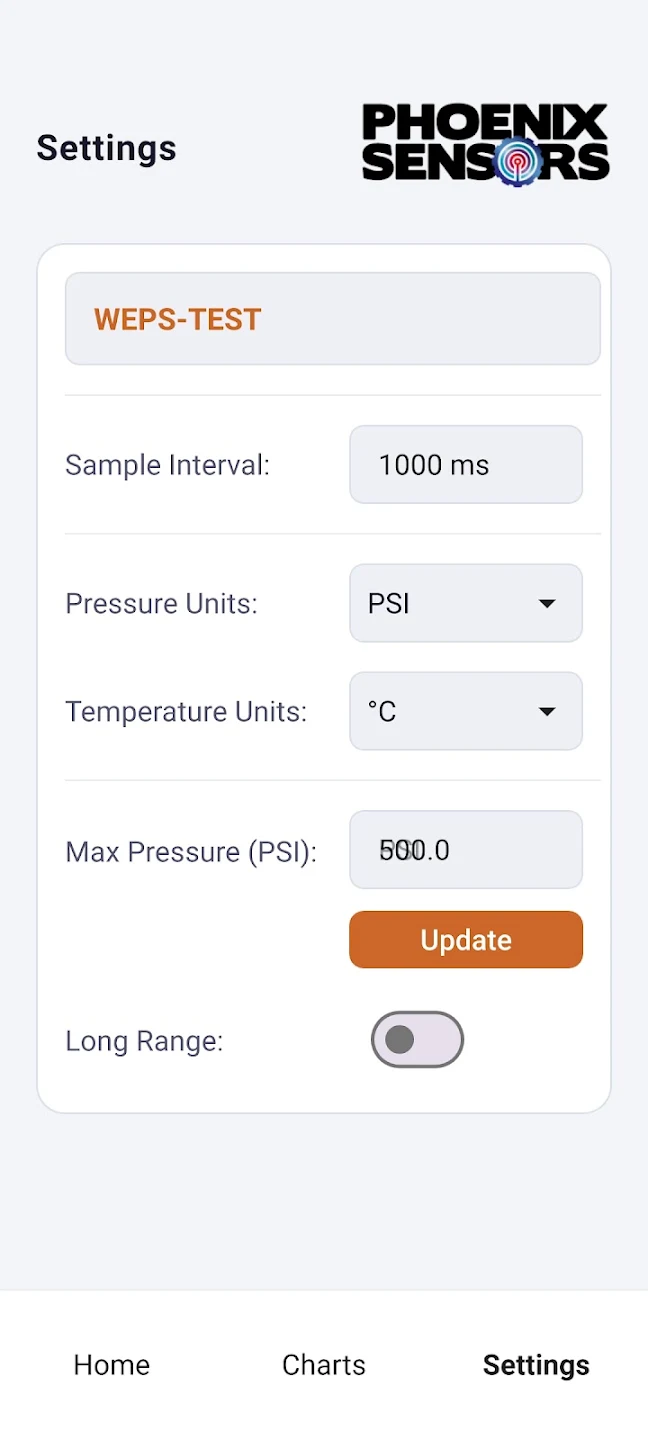

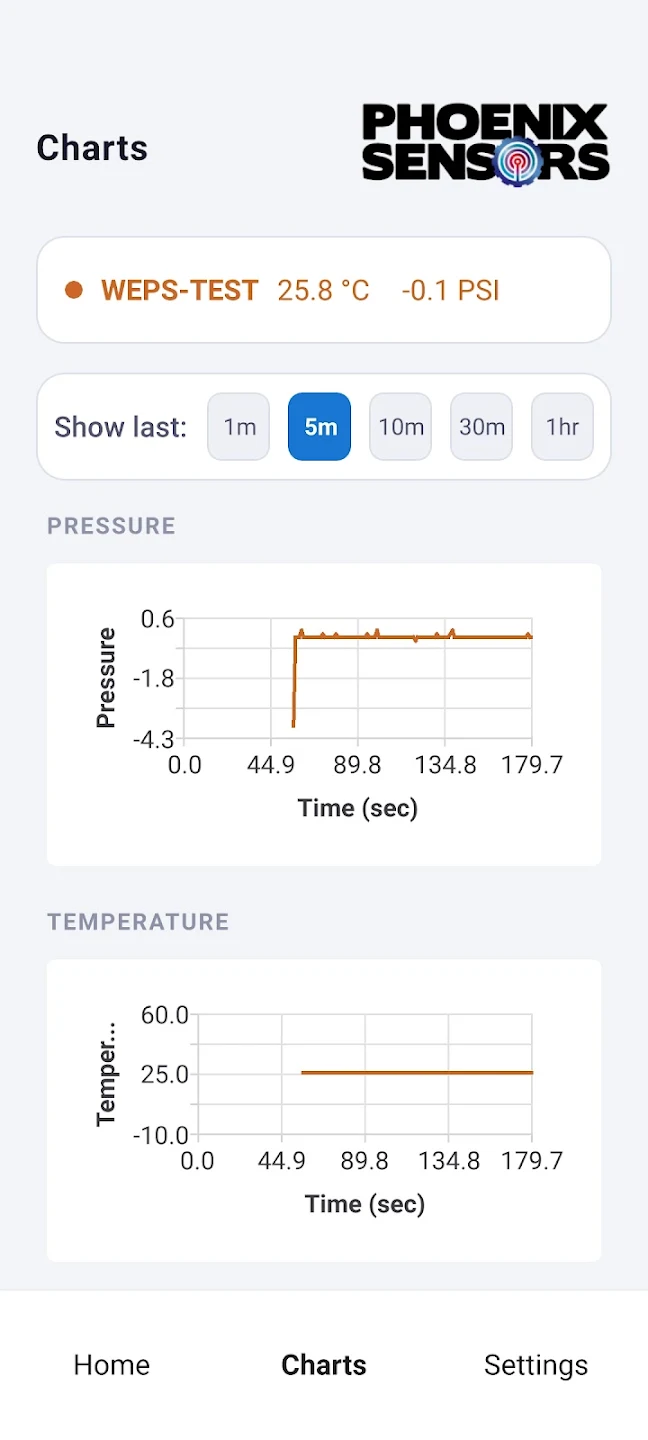

WEXS Pro
Up to 10 sensors · Advanced BLE
- EEPROM download (up to 85K samples)
- Long Range option
- High-speed pressure, as fast as every 5 ms
- Date/time stamped exports
- Pressure and temperature
- Signal strength monitoring
- Charts and CSV export
More screenshots

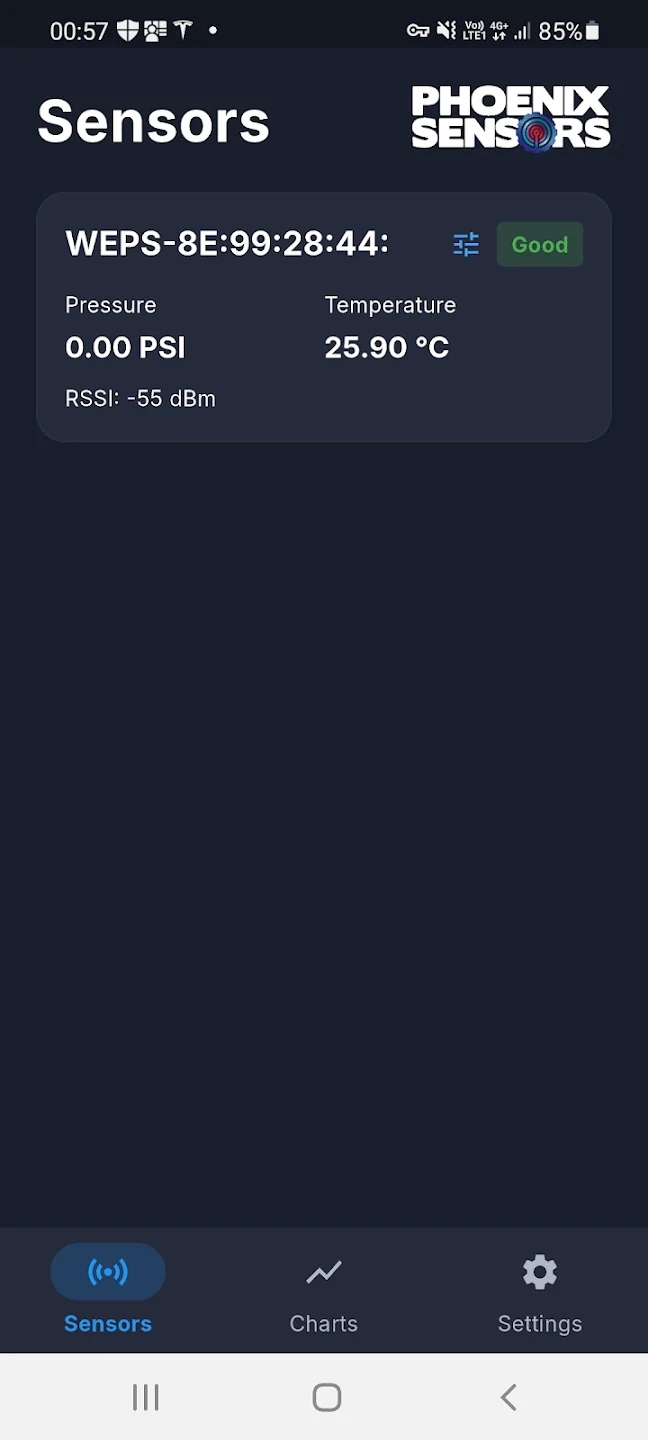

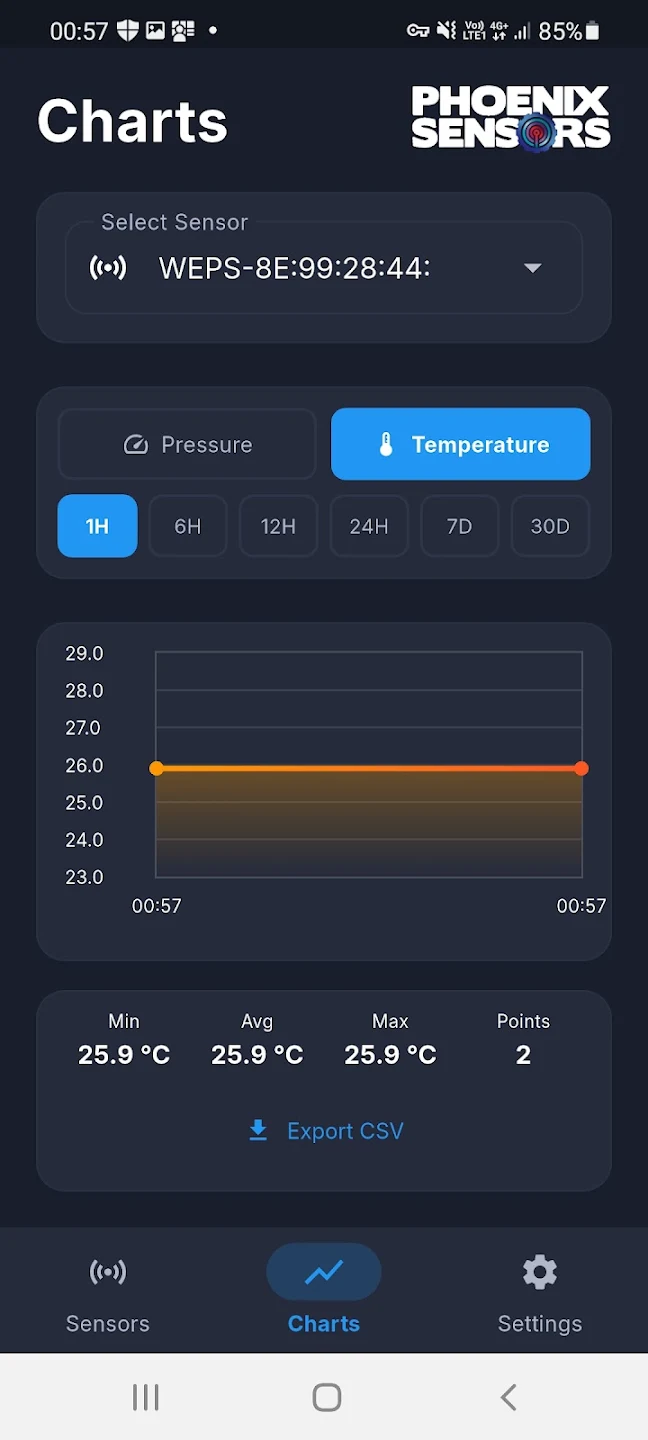

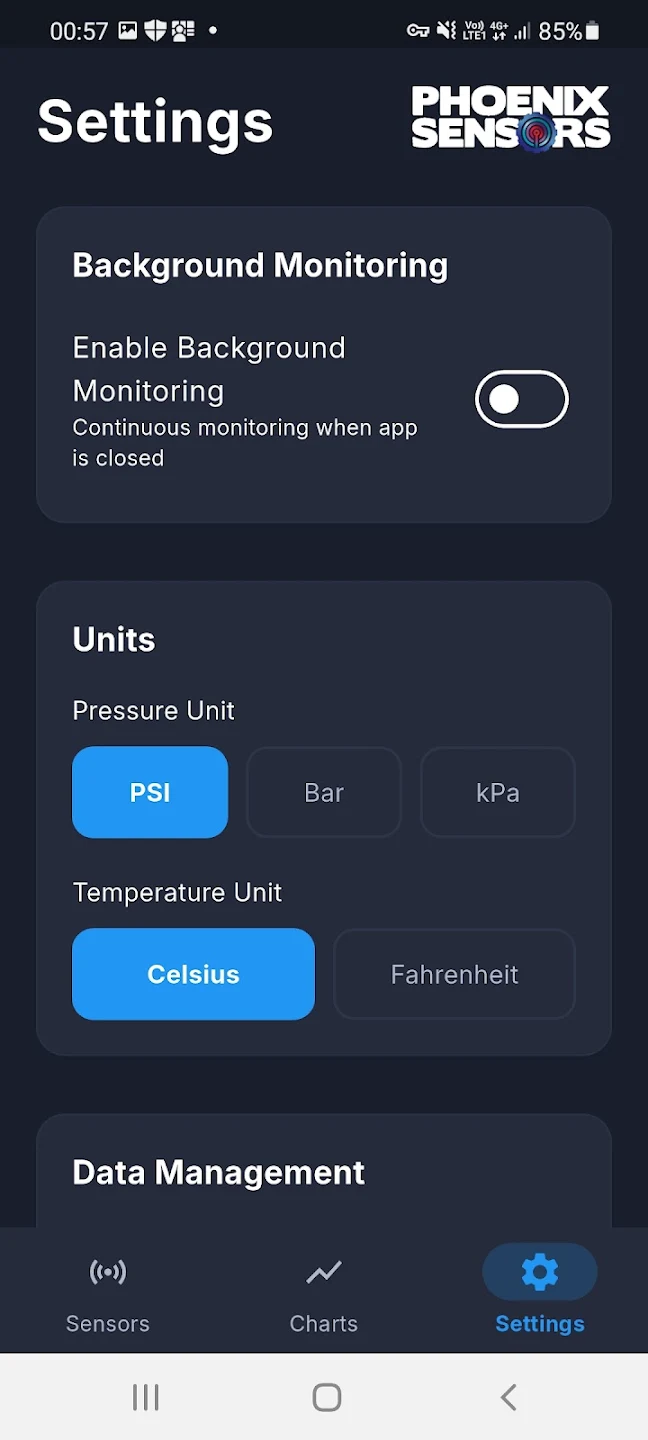

WEXS Beacon
Beacon (B) sensors · No connection held
- Pressure and temperature
- Historical charts
- Min / max / average
- Local history and CSV export
- Background monitoring
- Signal strength (RSSI)
More screenshots

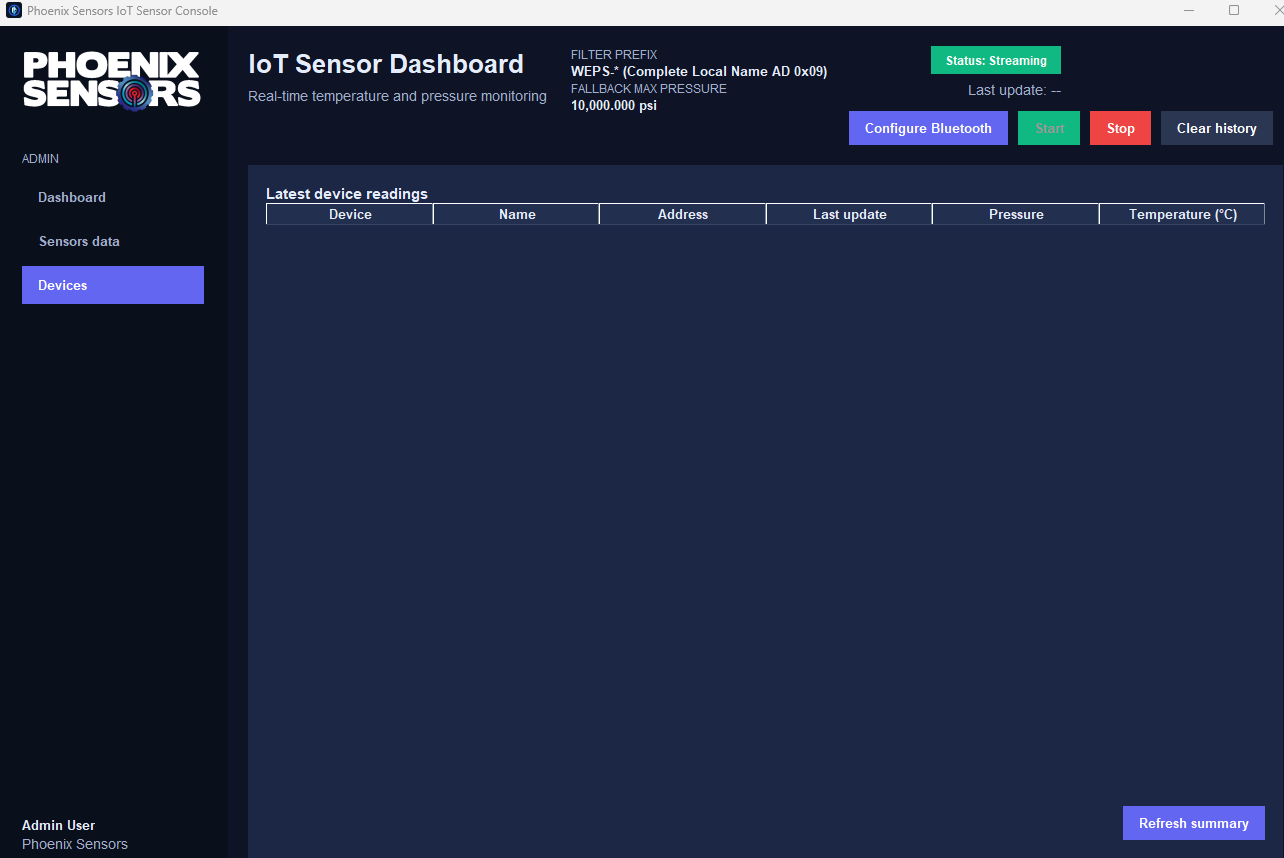

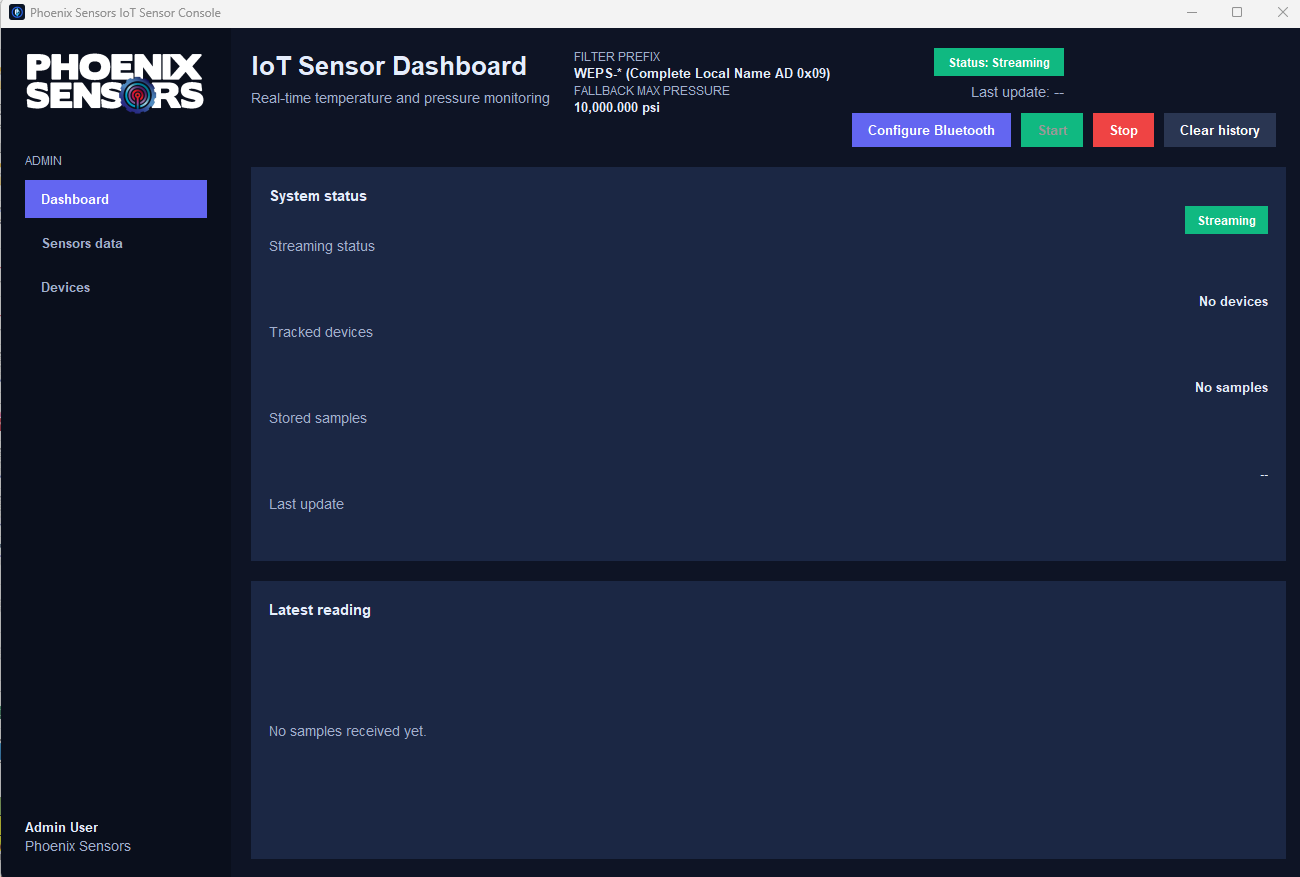

WEXS-BLE-DSKTP
Up to 25 sensors · Beacon Mode · Offline
- Live pressure and temperature
- Timestamped sensor history
- Start / stop data acquisition
- CSV export
- Data saved locally, no internet needed
- Updates every ~2–5 seconds
More screenshots
IoT monitoring & analog integration
Gateway-based options for remote cloud monitoring or feeding a PLC / DAQ. Each requires its own gateway hardware.

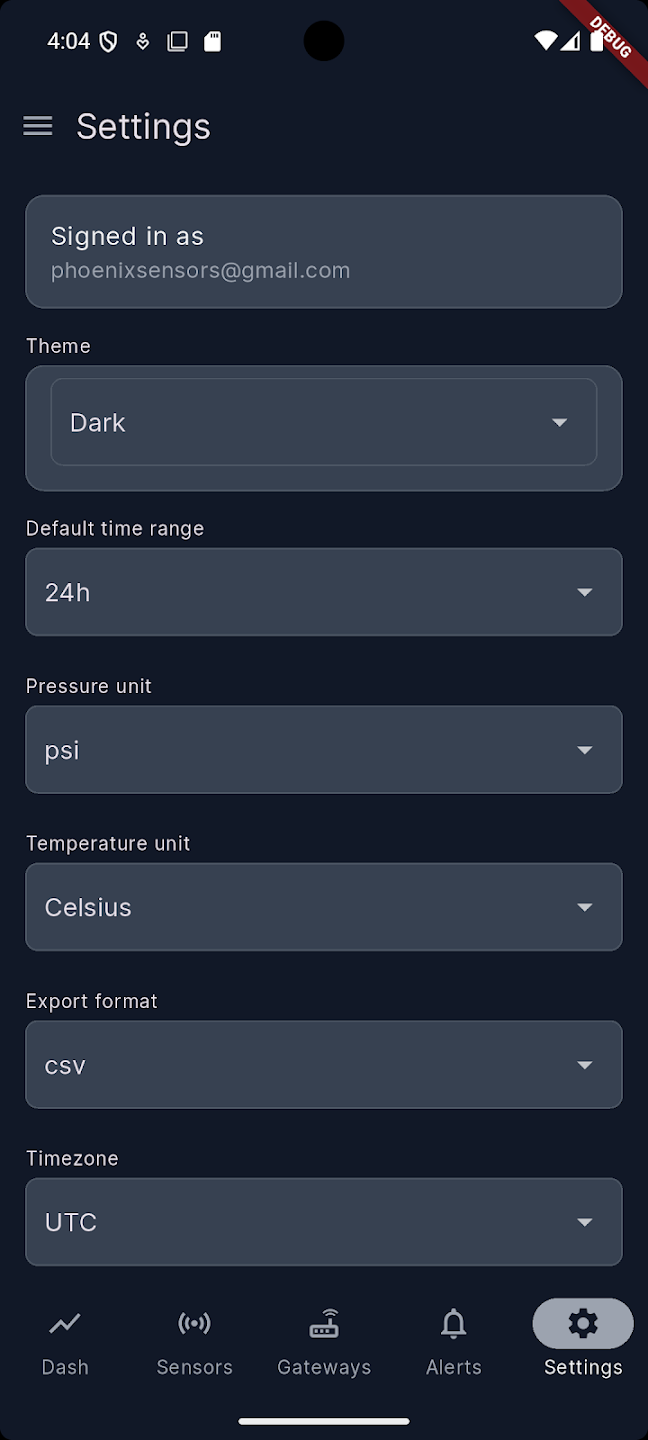

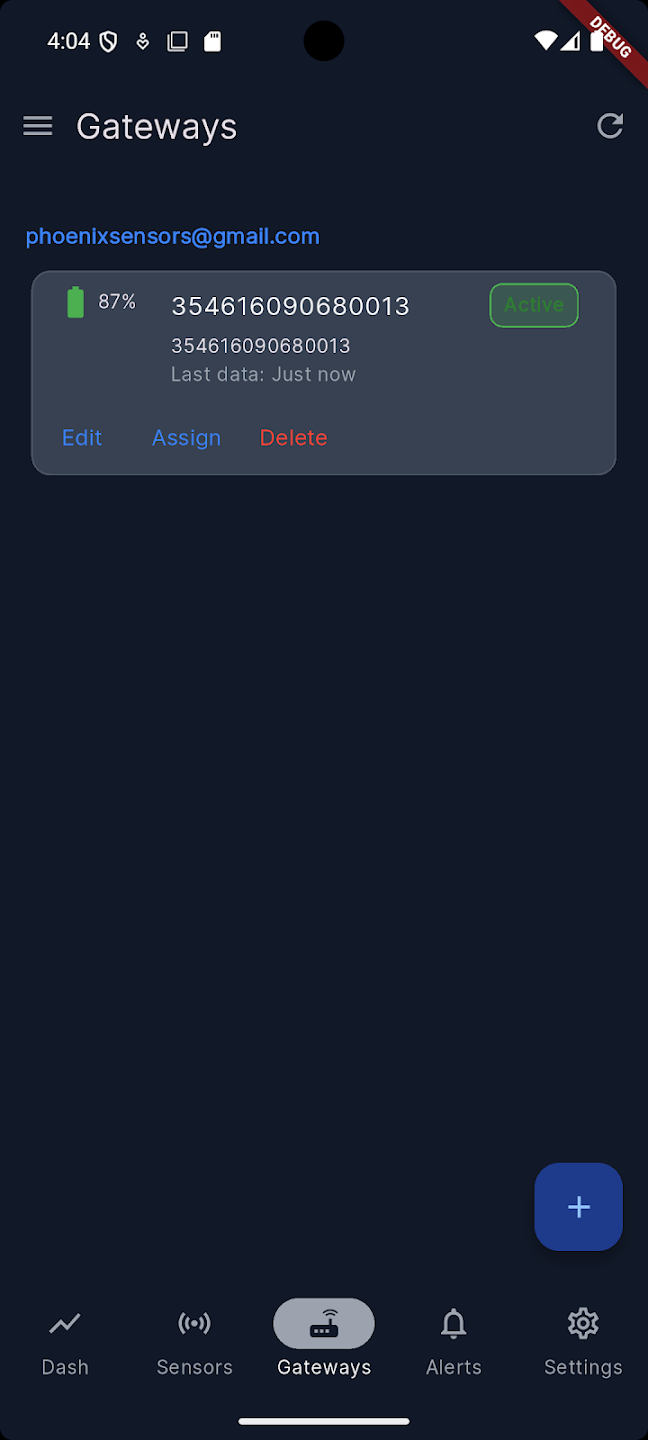

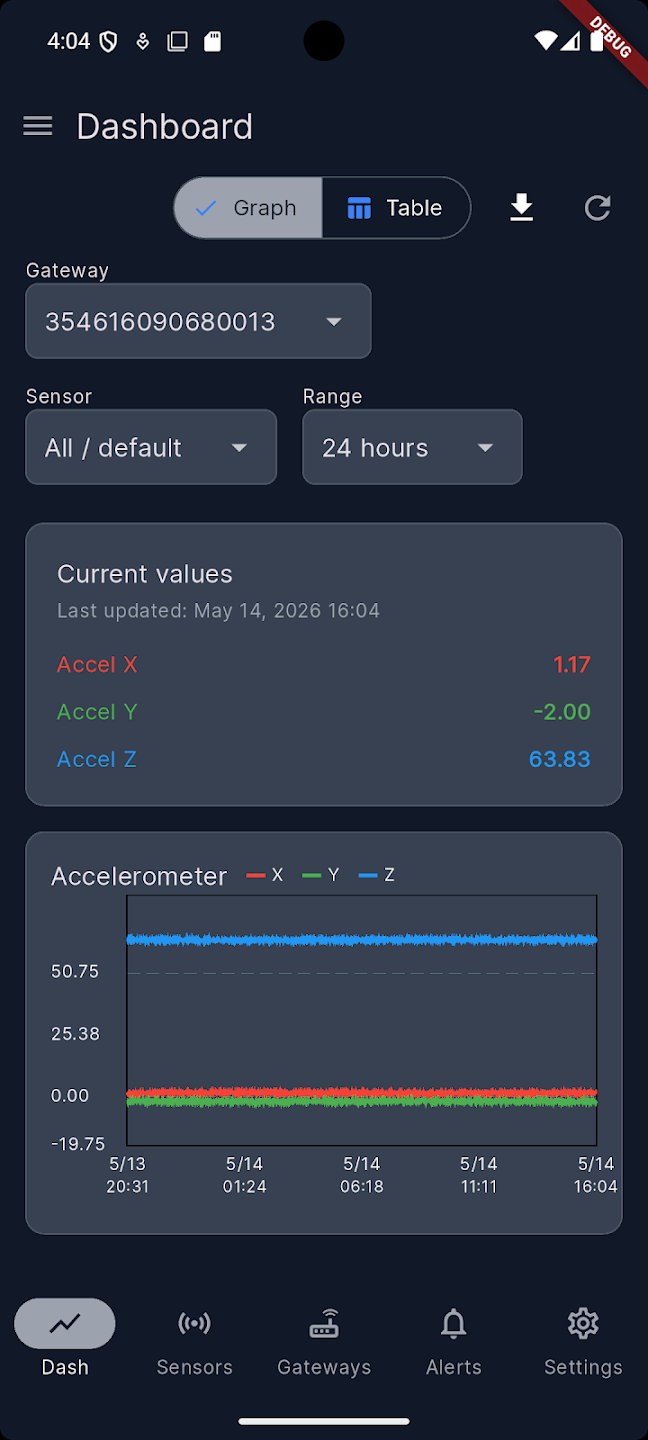

Monsense
Multiple sensors and gateways · Remote
- Remote live data
- Historical graphs
- Raw data views
- CSV / JSON export
- Email / SMS alerts
- Gateway management
- Pressure and temperature
- Accelerometer data
More screenshots

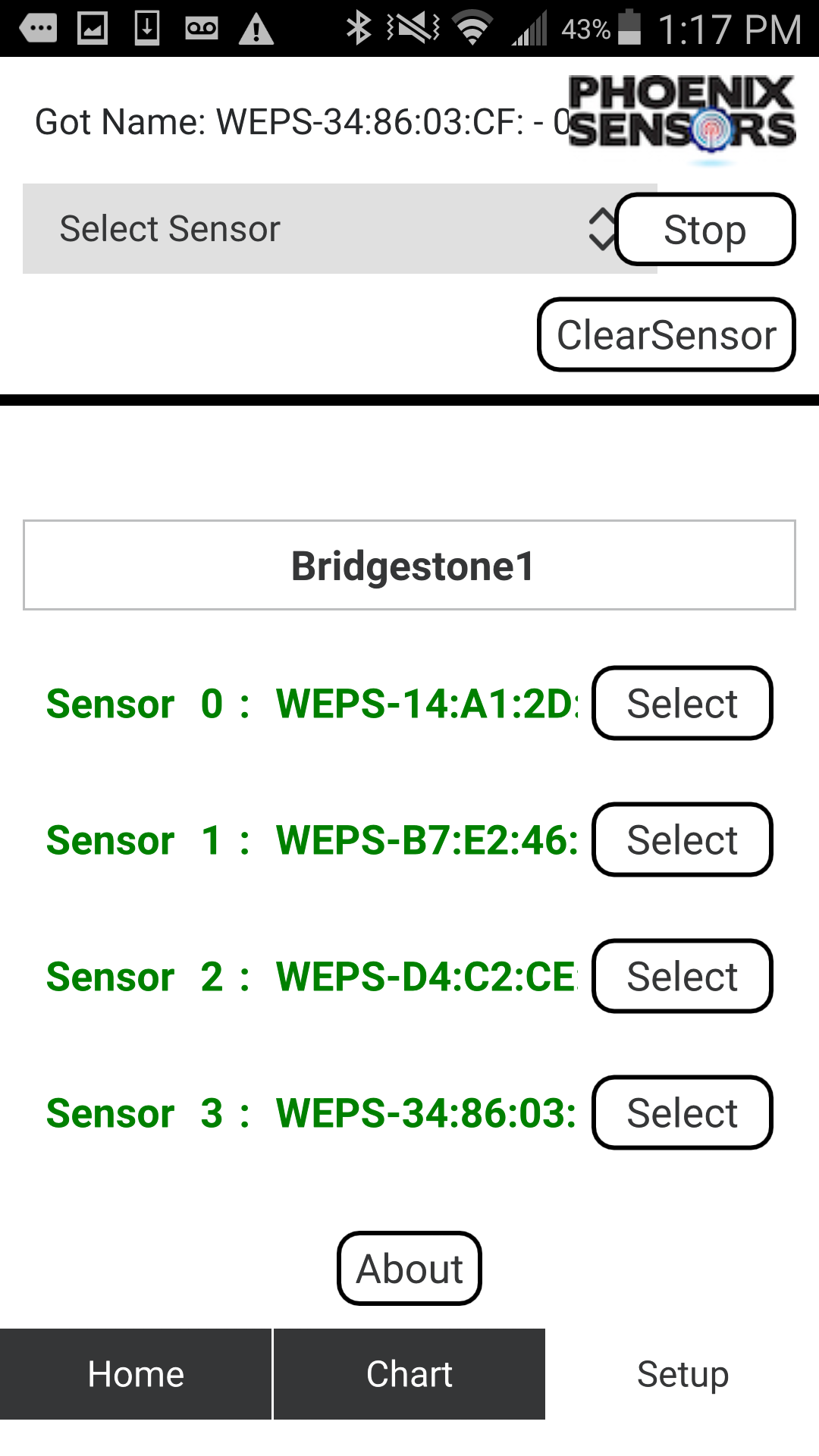

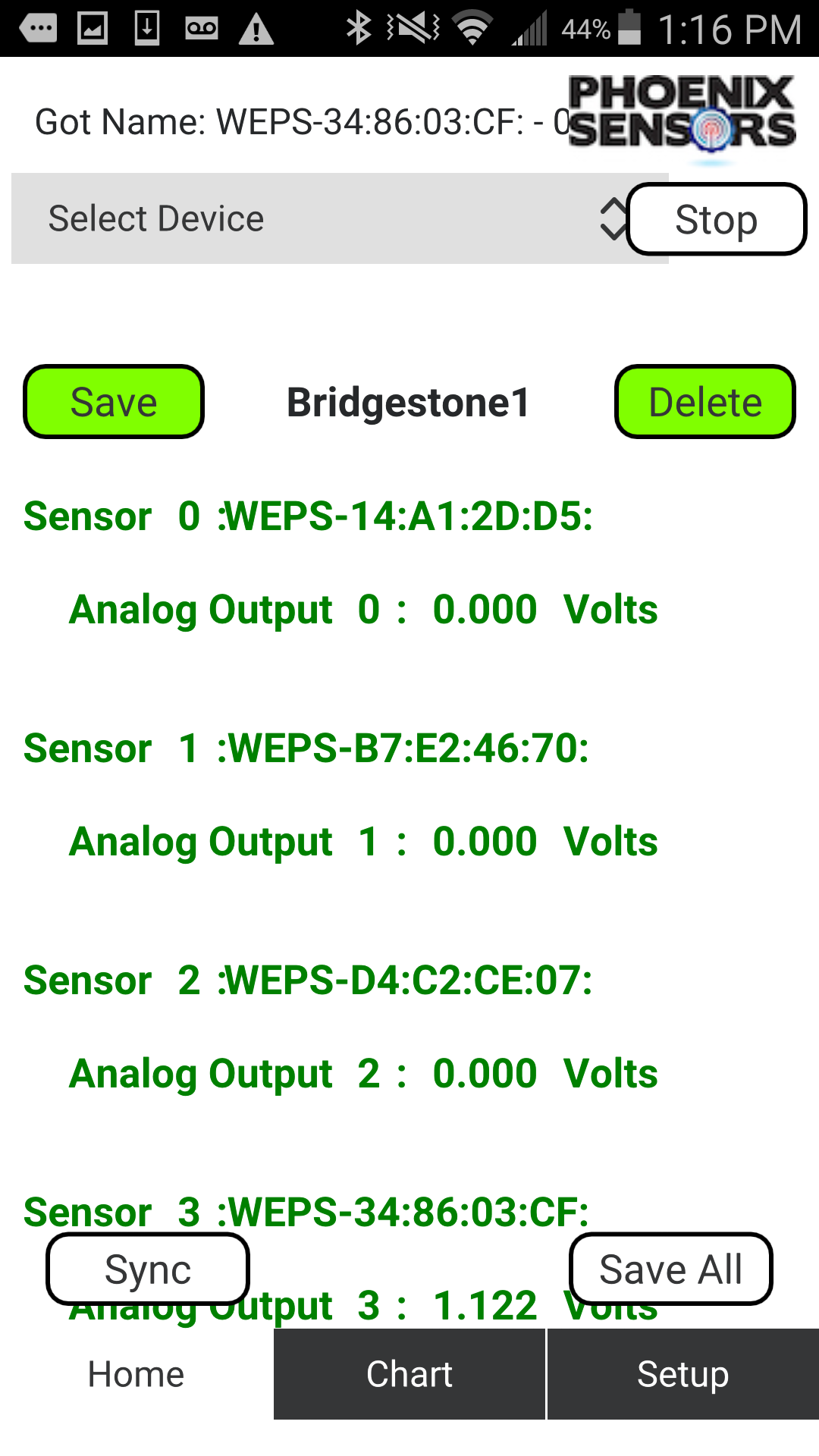

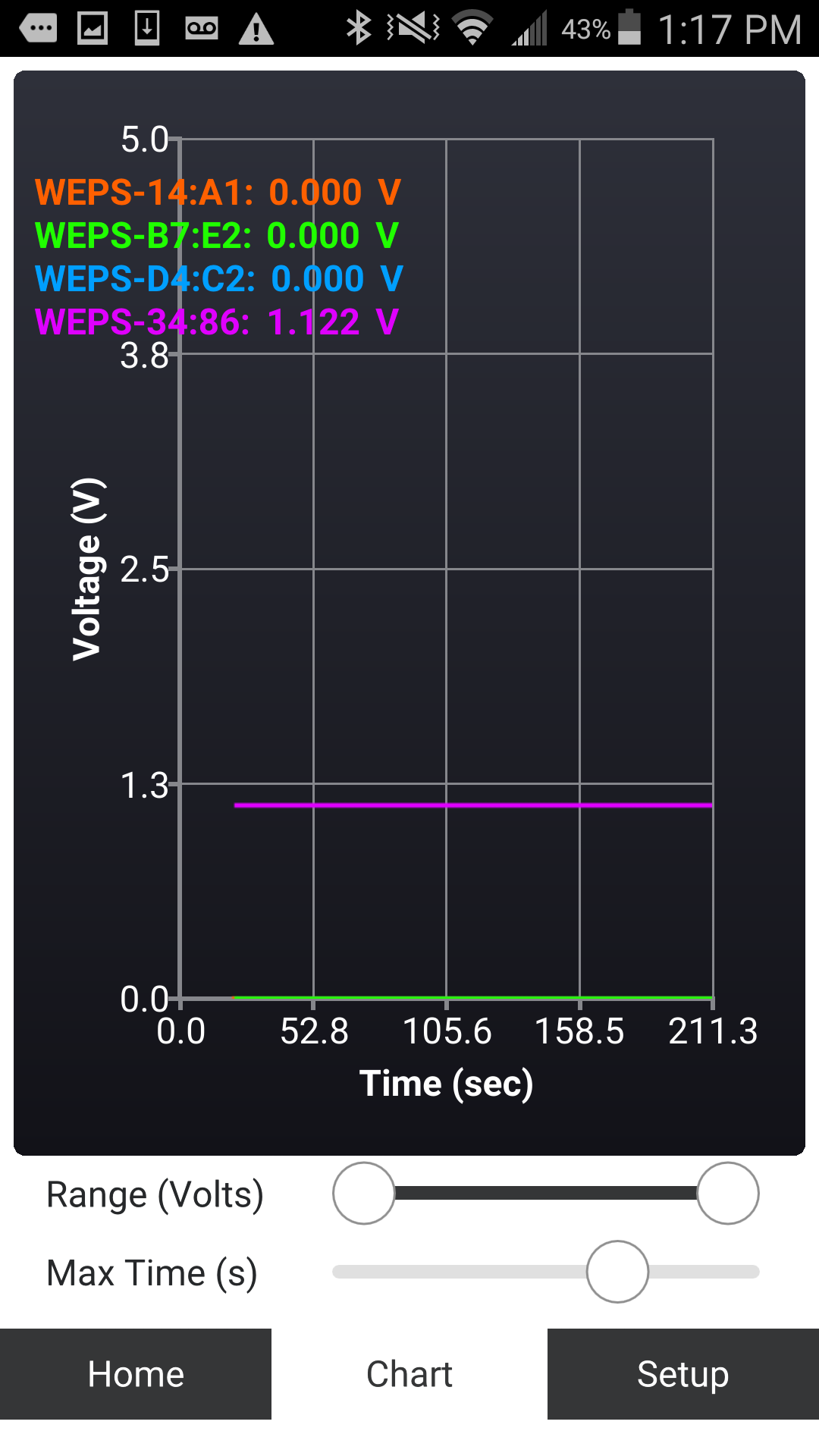

WEXS-BLE-AN
Up to 4 sensors · 0–5 V outputs
- Assign sensors to channels
- 0–5 V analog outputs
- Live voltage values
- Voltage charting
- Local data saving
- PLC / DAQ integration
More screenshots
All Phoenix Sensors mobile Apps are covered by our Privacy Policy for Mobile Applications.
Wireless sensors & gateways
The hardware these Apps work with. Each sensor is available in a standard BLE version and a Beacon (B) version.
WEPS04
Compact Bluetooth pressure sensor for direct local monitoring, testing and data collection.

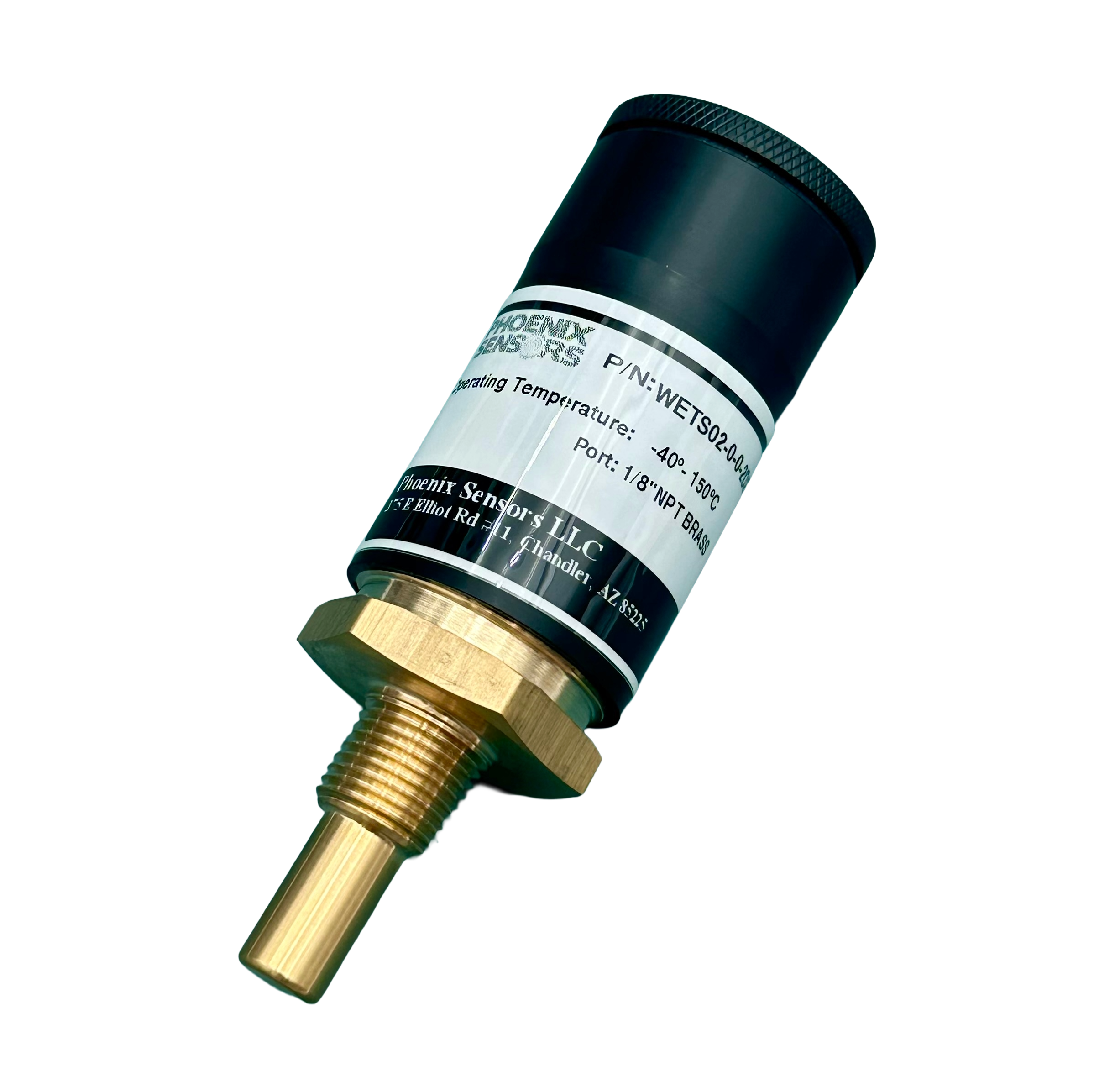

WETS02
Bluetooth temperature transducer for local temperature monitoring.
WEPS25
BLE pressure sensor with onboard data logging and support for advanced WEXS Pro functions.
WETS25
Wireless temperature sensor for higher-temperature monitoring and data logging Applications.
WEXS-BLE-AN
Converts compatible wireless sensor measurements to 0–5 V analog outputs. Set up with the WEXS-BLE-AN App.
WEXS-BLE-CEL
Collects Beacon sensor data and sends it to Monsense for remote monitoring.
Integration options
Two ways to get wireless measurements beyond a nearby phone.
Remote monitoring with Monsense
When measurements need to be available remotely, not just on a nearby device.
PLC / DAQ integration with WEXS-BLE-AN
When wireless measurements need to feed equipment that expects a conventional analog signal.
Standard BLE vs. Beacon Mode
Every Phoenix Sensors wireless sensor uses Bluetooth Low Energy. How the sensor is configured decides which App can read it.
Standard connected BLE
Your phone connects directly to the sensor, allowing two-way communication.
- Used by WEXS and WEXS-10 for standard local monitoring
- WEXS Pro adds Long Range and advanced datalogger features
- WEXS Pro can download stored EEPROM data from compatible sensors
- Best when you need to interact directly with the sensor
Beacon Mode
The sensor broadcasts its measurements in BLE advertisements instead of holding a connection.
- Sensor spends more time in low-power operation
- Can help improve battery life
- WEXS Beacon can monitor while running in the background
- Beacon data can also be read by WEXS-BLE-DSKTP on a PC, or collected by the WEXS-BLE-CEL gateway
- Does not download stored EEPROM data
Sensor and App compatibility can vary by sensor model, firmware, factory configuration and Application. Confirm compatibility for your specific part number and monitoring setup before ordering.
Not sure which App fits your setup?
Tell us which sensors you're using, how many, and where the data needs to go. We'll recommend the right App and gateway.
