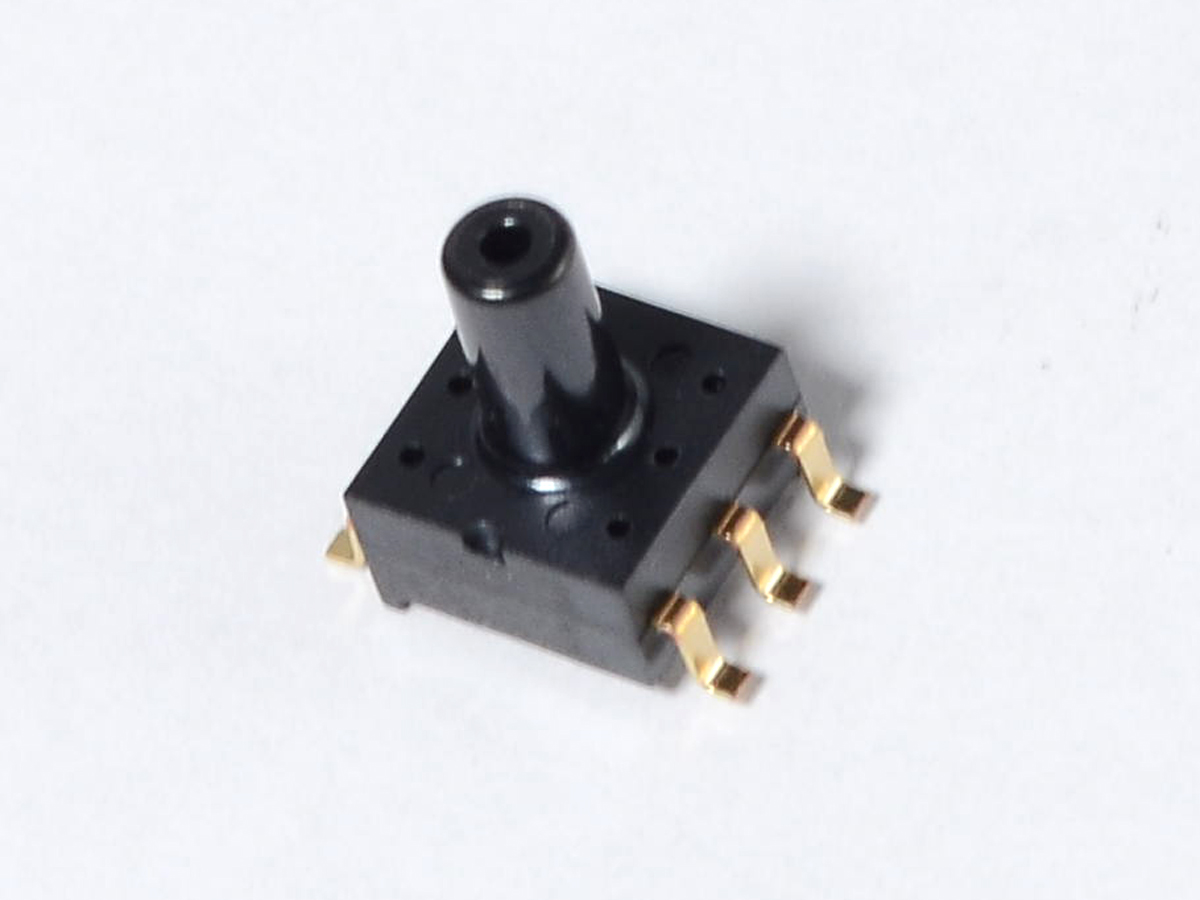

The PPS34 is a compact board level pressure sensor designed for OEM applications where space, cost, and direct digital integration are important. Combining MEMS piezoresistive sensing technology with an integrated 14-bit ADC, the PPS34 provides pressure measurement through SPI or I2C communication in a compact 6-pin package.
Designed for integration directly into electronic assemblies, the PPS34 provides engineers with a compact digital pressure sensing solution without the size and packaging of a traditional industrial pressure transducer.
Compact Board Level Pressure Sensor for OEM Designs
The PPS34 combines the pressure sensing element, signal conditioning, analog-to-digital conversion, and digital communication into a compact package. This helps simplify integration into embedded systems while minimizing external circuitry and PCB space.
Its pressure port is designed to accept 0.120-inch tubing, making the sensor well suited for compact equipment where pressure must be routed directly to the sensor within the assembly.
Key Features
- SPI or I2C digital communication
- Compact 6-pin board-level package
- MEMS piezoresistive sensing technology
- Integrated 14-bit ADC
- 0 to 150 PSI gauge pressure range
- ±0.5% FS accuracy
- Integrated temperature measurement
- DIP and surface-mount options for OEM integration
- Custom configurations available
Digital Pressure Sensor with SPI and I2C Integration
With both SPI communication and I2C communication options, the PPS34 can interface directly with microcontrollers and other embedded electronics.
This digital architecture makes the PPS34 particularly useful for OEM systems where pressure data needs to become part of a larger electronic control, monitoring, or data acquisition system.
Board Level Pressure Sensor Applications
The PPS34 board level pressure sensor is suited for compact and embedded pressure measurement applications including:
- Small pumps and fluid systems
- Weather monitoring equipment
- Industrial equipment
- Aviation systems
- Portable electronic devices
- Embedded OEM pressure monitoring systems
Looking for a different pressure sensing configuration? Explore our complete range of OEM pressure sensors and pressure sensing elements.
OEM Pressure Sensor Integration
Phoenix Sensors works with OEM customers to develop pressure sensing solutions around the requirements of the application. Depending on project requirements and production volume, PPS34 options can include custom pressure ranges, surface-mount packaging, and application-specific configurations.
If you are evaluating a board level pressure sensor for a new or existing product, our team can help review pressure range, media compatibility, packaging, electrical interface, and integration requirements.
