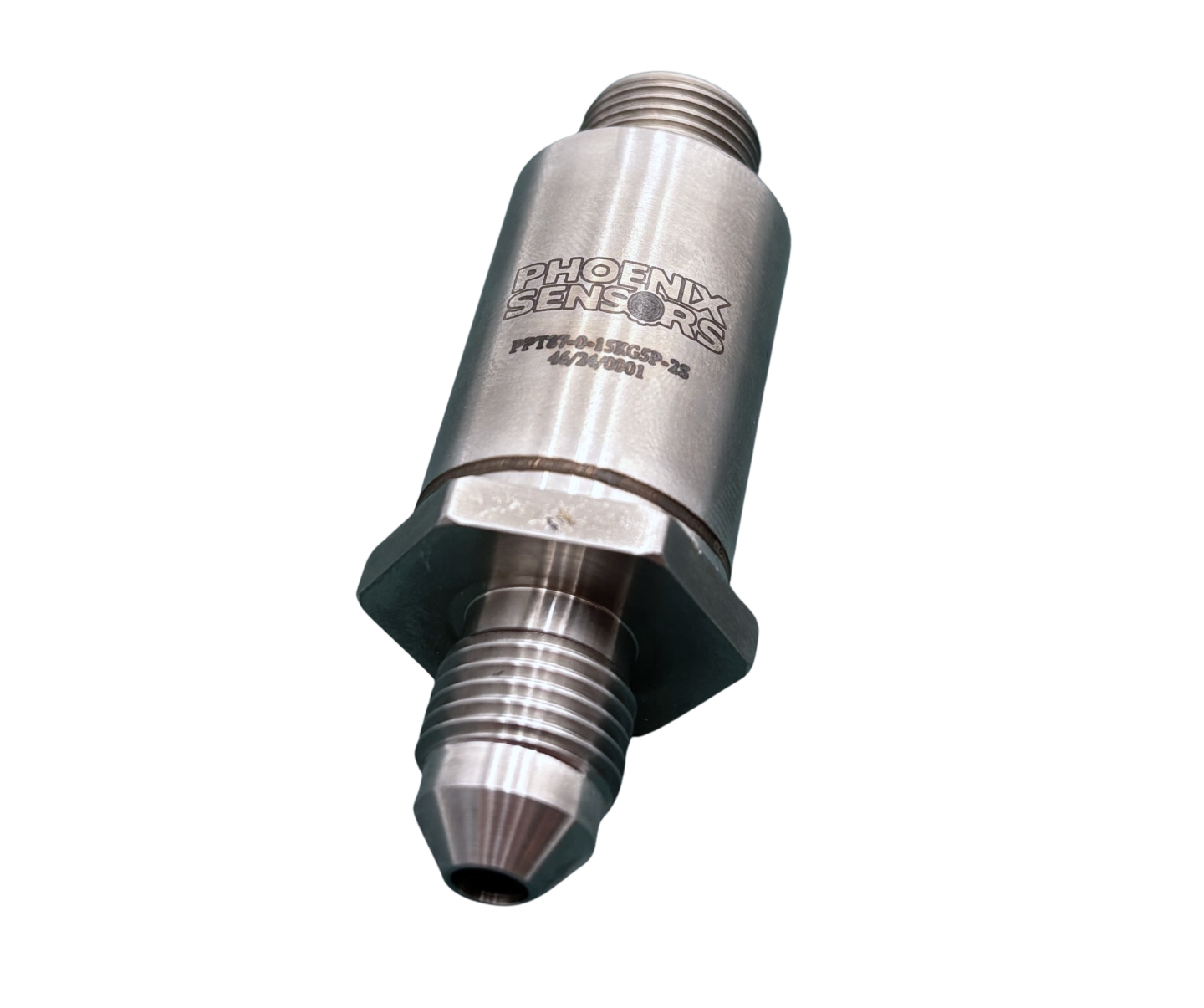

PPT87 Autoclave Pressure Transducer
The PPT87 autoclave pressure transducer is a digital high-pressure sensor designed for demanding OEM applications requiring pressure measurement up to 20,000 PSI and operating temperatures up to 150°C. Available with a 9/16-18 UNF-3A autoclave pressure connection, the PPT87 combines pressure and media-temperature measurement with digital I²C or SPI communication in a rugged stainless steel package.
Designed for high-pressure industrial, aerospace, automotive, pneumatic, and other harsh-media applications, the PPT87 provides OEM engineers with a compact digital sensing platform that can be configured for the requirements of the application.
High-Pressure Measurement with an Autoclave Connection
For high-pressure systems, the PPT87 is available with a 9/16-18 UNF-3A autoclave pressure port. This connection option makes the sensor particularly well suited for applications where conventional lower-pressure process connections may not meet the system requirements.
Pressure ranges are available from 50 to 20,000 PSI in gauge or absolute configurations. Other pressure connections include 1/4-inch NPT, 1/8-inch NPT, and 7/16-20 UNF-3A, allowing the PPT87 platform to support both high-pressure and more conventional OEM installations.
High-Temperature Autoclave Pressure Transducer to 150°C
The PPT87 autoclave pressure transducer is designed to operate across a -40°C to 150°C temperature range while measuring both pressure and media temperature. Its silicon MEMS pressure element is media isolated and hermetically sealed within the stainless steel housing, while thermally compatible materials help reduce mechanical stress as temperature changes.
This combination is useful for applications where both elevated temperature and high pressure must be considered when selecting a transducer, including engine systems, compressors, industrial equipment, and demanding test or control systems.
Digital I²C and SPI Pressure Transducer
The PPT87 combines the capabilities of a high-pressure autoclave pressure transducer with direct digital communication. Unlike conventional high-pressure transmitters that rely on an analog output, the PPT87 provides an I²C or SPI interface. Internal signal processing conditions the pressure signal, applies temperature correction, and provides corrected pressure and temperature data to the host system.
I²C versions use a standard 0x28 slave address, with other addresses available by request. Protocol, operating mode, update rate, core clock, and other communication parameters are factory configured based on the application.
PPT87 Key Features
- Pressure ranges from 50 to 20,000 PSI
- Gauge or absolute pressure measurement
- 9/16-18 UNF-3A autoclave pressure port option
- Operating temperature from -40°C to 150°C
- Digital I²C or SPI output
- Pressure and media-temperature measurement
- ±1.0% FS standard accuracy
- SS316/SS316L stainless steel construction
- Media-isolated MEMS pressure sensing element
- IP65 or IP67 configurations
- Flying leads, Molex, or M12 electrical connections
- Low-power configurations available
Built for Harsh OEM Applications
The stainless steel wetted construction allows the PPT87 to work with a variety of compatible liquid and gaseous media, including oil, air, gas, salt water, and some corrosive media. Its vibration-resistant construction also supports installation in demanding equipment and engine environments.
For additional technical information on pressure measurement and calibration, engineers can reference the NIST resources for piston gauges and pressure transducers.
Autoclave Pressure Transducer Applications
The PPT87 can be configured for a range of high-pressure and high-temperature OEM systems, including:
- Military and aerospace systems
- Industrial automation
- Automotive and engine pressure measurement
- Compressors
- Pneumatic systems
- High-pressure test equipment
- Harsh liquid, air, and gas applications
- OEM equipment requiring digital pressure feedback
Configure the PPT87 for Your OEM Application
Phoenix Sensors can configure the PPT87 around the pressure range, pressure reference, process connection, electrical connection, digital interface, and operating requirements of your application. Custom pressure ranges, cable lengths, Inconel port options, and other configurations are available for OEM volumes.
If your application requires an autoclave pressure transducer for high pressure, elevated temperature, or digital system integration, our team can help determine the appropriate PPT87 configuration.
