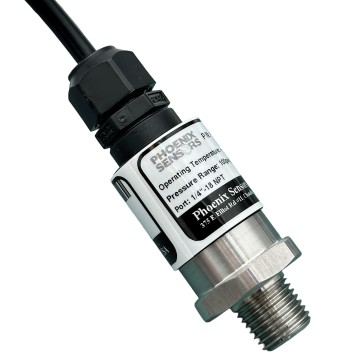

PPT67 Configurable Industrial Pressure Transducer for OEM Applications

Configurable Industrial Pressure Transducer for OEM Applications

The PPT67 Configurable Industrial Pressure Transducer is designed for OEM applications that require flexibility, reliability, and efficient integration.
Unlike fixed sensors, the PPT67 allows you to configure output type, pressure range, and connection style to match your system requirements.
This makes it a practical solution for engineers and buyers looking to standardize across multiple products while reducing design complexity.

With support for analog, current, and digital outputs, along with optional M8 connector configurations, the PPT67 integrates easily into embedded systems, PLC-controlled equipment, and industrial automation environments.

Key Features

• Configurable output options including analog, 4–20mA, and digital (I2C, SPI)
• Optional M8 (A-coded) connector for fast, reliable installation
• Wide pressure range from 15 PSI to 8,000 PSI
• Gauge, absolute, and sealed gauge configurations available
• Accuracy options from ±0.15% to ±1.0% full scale
• Operating temperature options up to 125°C

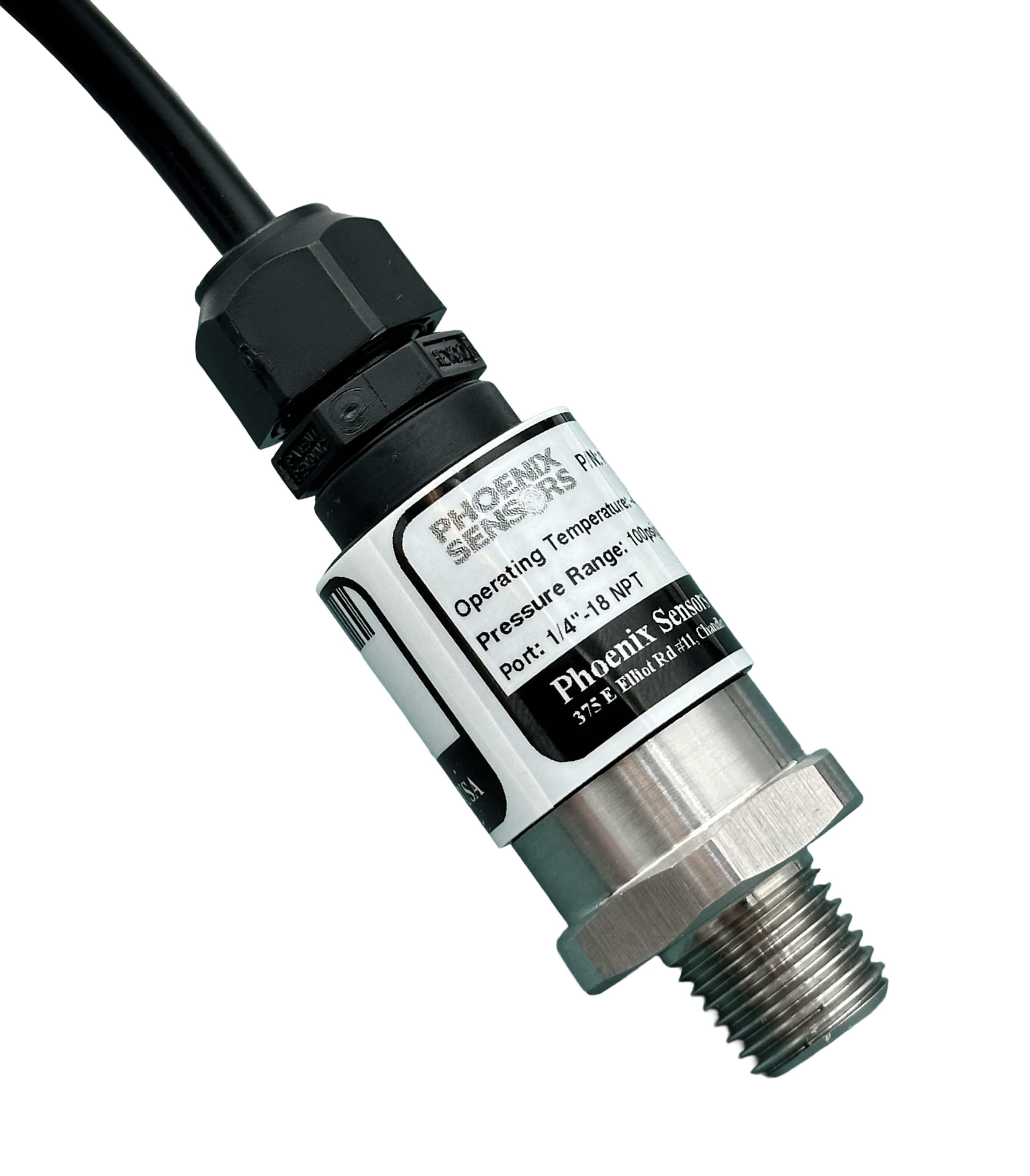

• IP65 standard, IP67 with cord grip or connector
• Multiple process connections including NPT, UNF, and BSPP
• Compact, OEM-friendly design
• Designed for cost-effective production and scalability

Configurable Industrial Pressure Transducer Platform

The PPT67 is built as a configurable industrial pressure transducer platform rather than a fixed product. This allows engineers to align the sensor with specific application requirements without redesigning around limitations.

By selecting the appropriate configuration, the same sensor platform can be used across multiple systems, reducing part variation and simplifying sourcing.

M8 Connector Option for Industrial Environments

For applications that require quick installation and consistent wiring, the PPT67 is available with an M8 (A-coded) connector.
This option is ideal for industrial automation systems and field-installed equipment where reliability and ease of installation are critical.

• Reduces installation time
• Minimizes wiring errors
• Supports IP67 sealing when properly mated
• Provides a standard industrial interface

Variety of Applications for the PPT67 Configurable Industrial Pressure Transducer

The PPT67 configurable industrial pressure transducer is used across a wide range of OEM and industrial applications:

• Industrial equipment
• Hydraulic and pneumatic systems
• HVAC systems
• Fluid and gas pressure monitoring
• Agriculture equipment
• Construction equipment
• General OEM integration
• Industrial automation systems

Technical Specifications

Parameter	Specification
Pressure Range	15 PSI to 8,000 PSI
Pressure Type	Gauge, Absolute, Sealed Gauge
Output Options	0.5–4.5V, 0–5V, 4–20mA, I2C, SPI
Accuracy	±0.15% to ±1.0% FS
Operating Temperature	-40°C to 125°C
Storage Temperature	-55°C to 130°C
Proof Pressure	1.25× Full Scale
Burst Pressure	1.5× Full Scale
Environmental Rating	IP65 standard, IP67 optional
Process Connections	1/4″ NPT, 1/8″ NPT, 7/16-20 UNF, 9/16-18 UNF, 1/4″ BSPP
Housing Materials	Delrin (standard), SS316L (high temperature)
Wetted Materials	SS316L, Buna-N O-ring
Electrical Connection	Flying leads or M8 connector



Designed for OEM Scalability

The PPT67 is designed to scale with your product. As your application evolves, the same sensor platform can be adapted without requiring a complete redesign.

This helps reduce engineering time, improve supply chain consistency, and support long-term product development.

Request a Quote or Technical Support to Determine the best Configurable Industrial Pressure Transducer for your Needs

If you are evaluating a configurable industrial pressure transducer for your application, our team can help define the right configuration based on your requirements.

Contact us to discuss your project, request pricing, or review technical details with our team.
